NPI Load Board Design

Designed pristine DC test boards for TO, PQFN,LGA and DFN platforms. Silver Award-winning signal optimization and socket life extension.

TO Package Pionered Integrted Load Board Design-Silver Medal

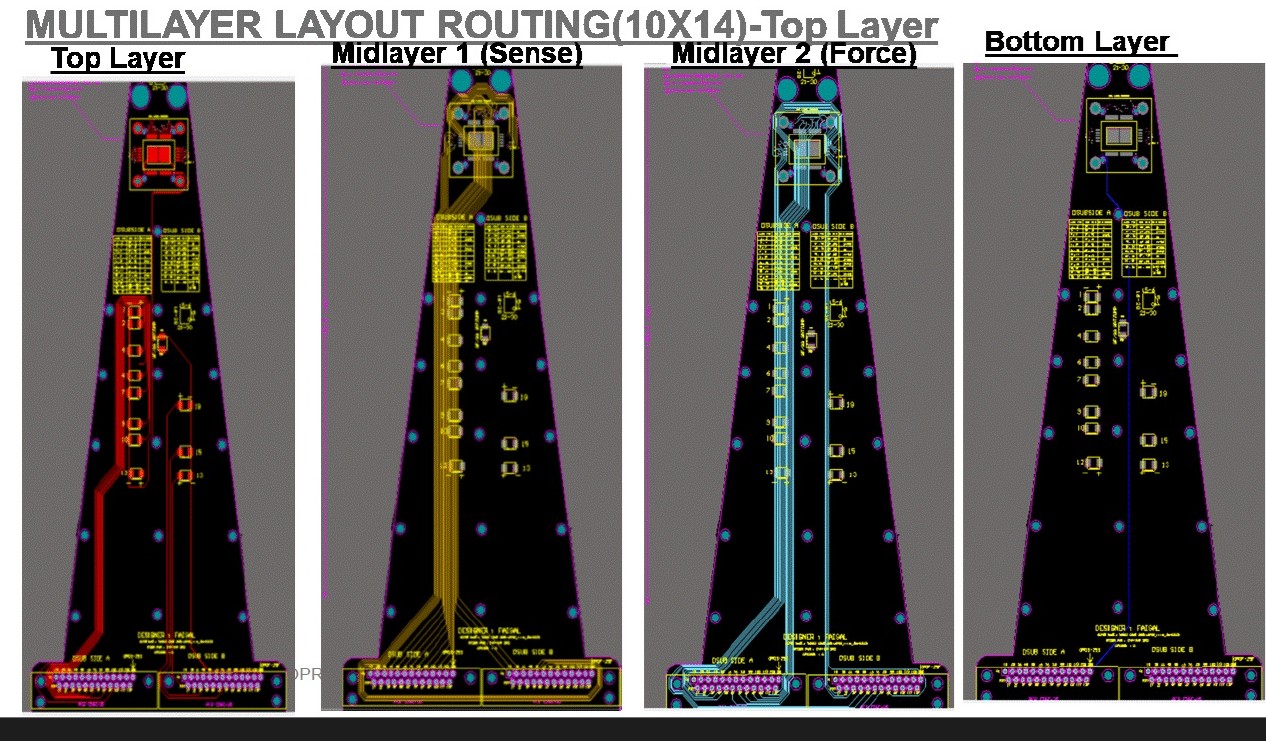

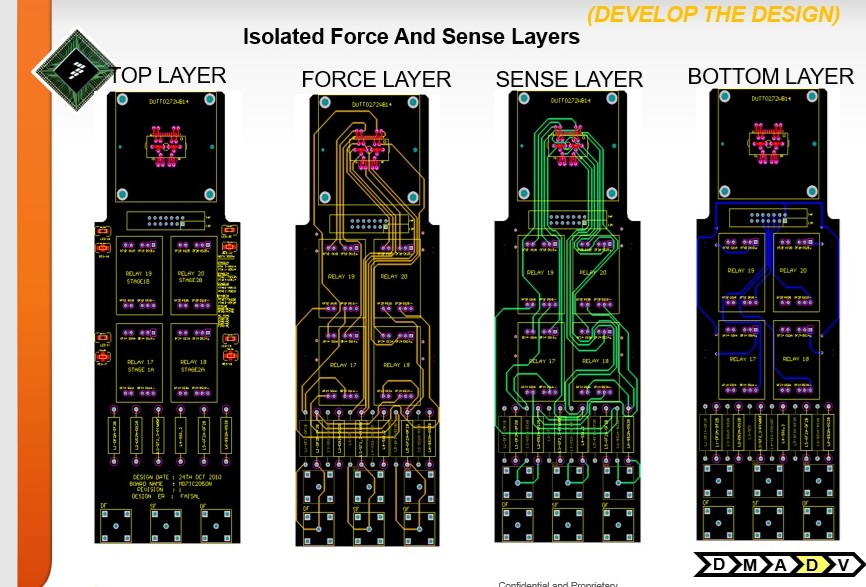

TO Package Pionered 4 Point Kelvin Force/Sense Desing-Silver Medal

Improved Vds on Acuuracy measurement by 50%-Silver Medal

Pioenered Pristine LGA Package Desing-Bronze Medal

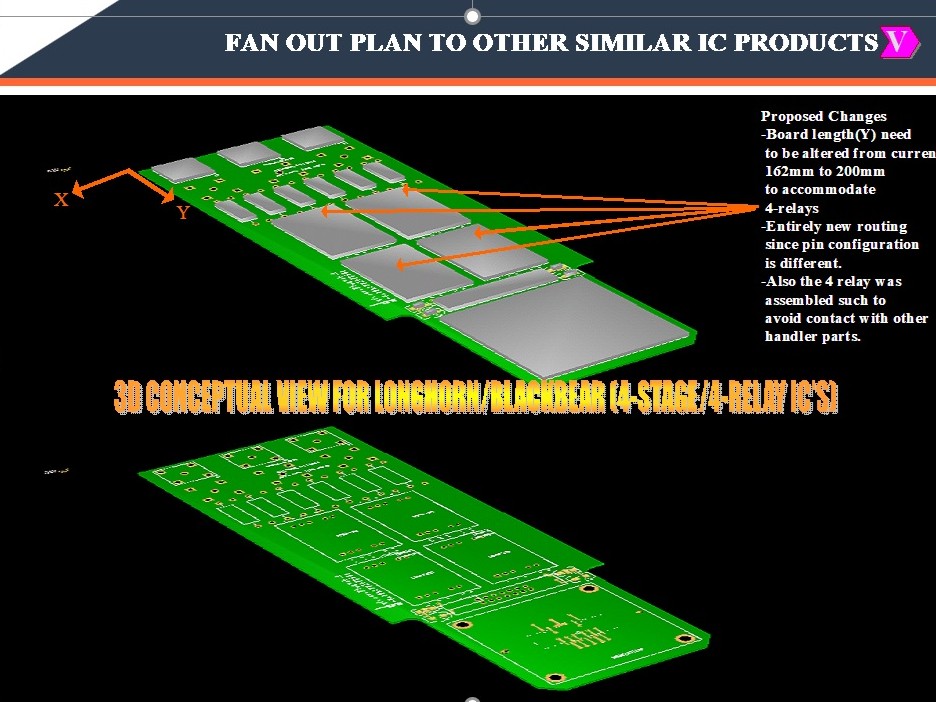

Design Fan Out to all LGA and DFN packages in different sizes

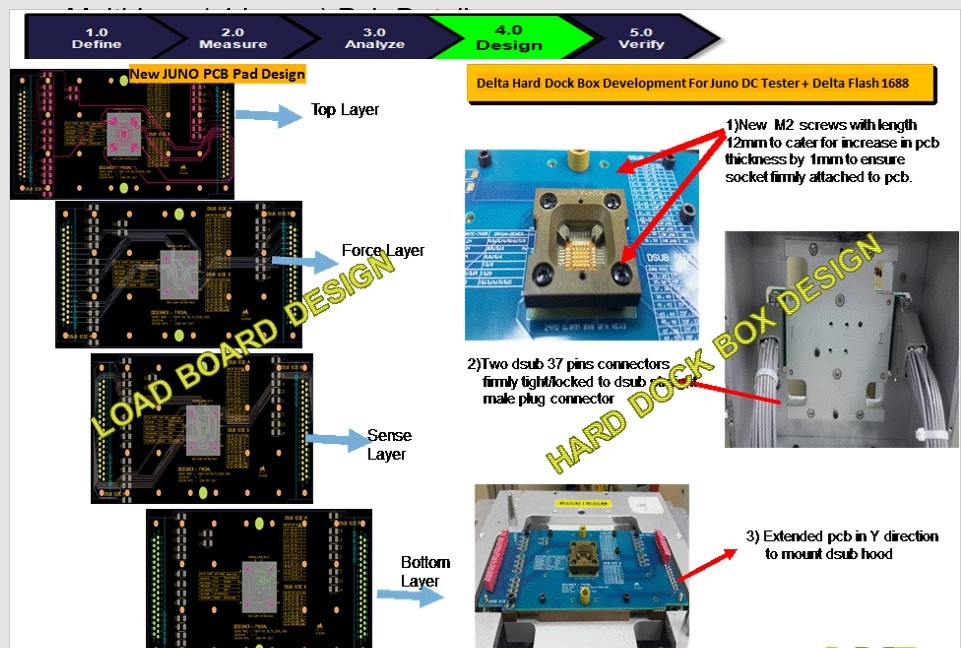

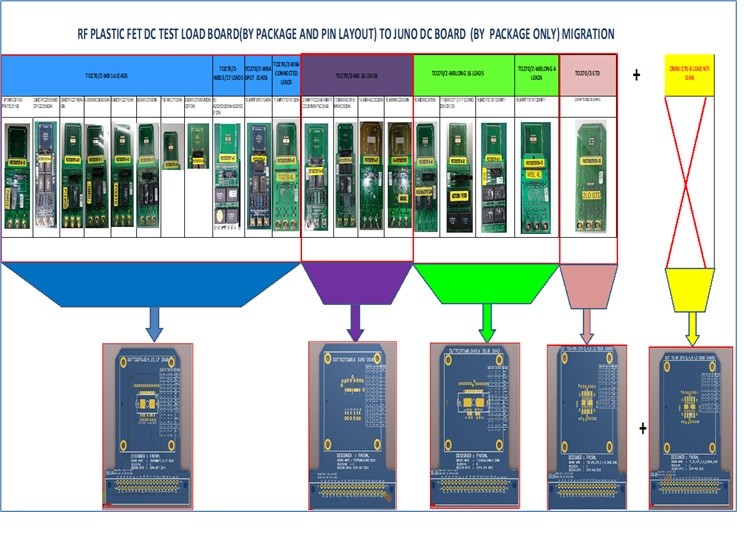

Pioenered PQFN Conversion to Juno by designng new load board-Bronze Medal

Highlights:

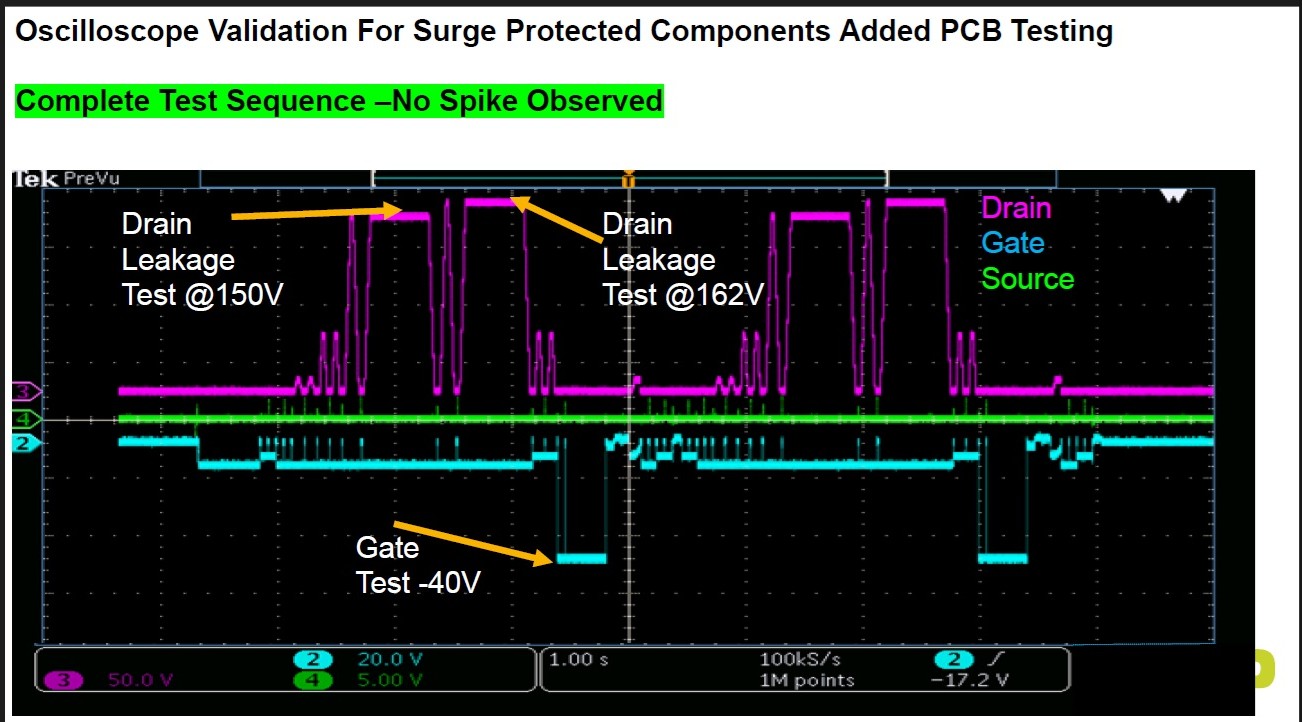

• Test fixture validation and board integrity
• Signal integrity and layout efficiency
• Cross-package compatibility solutions

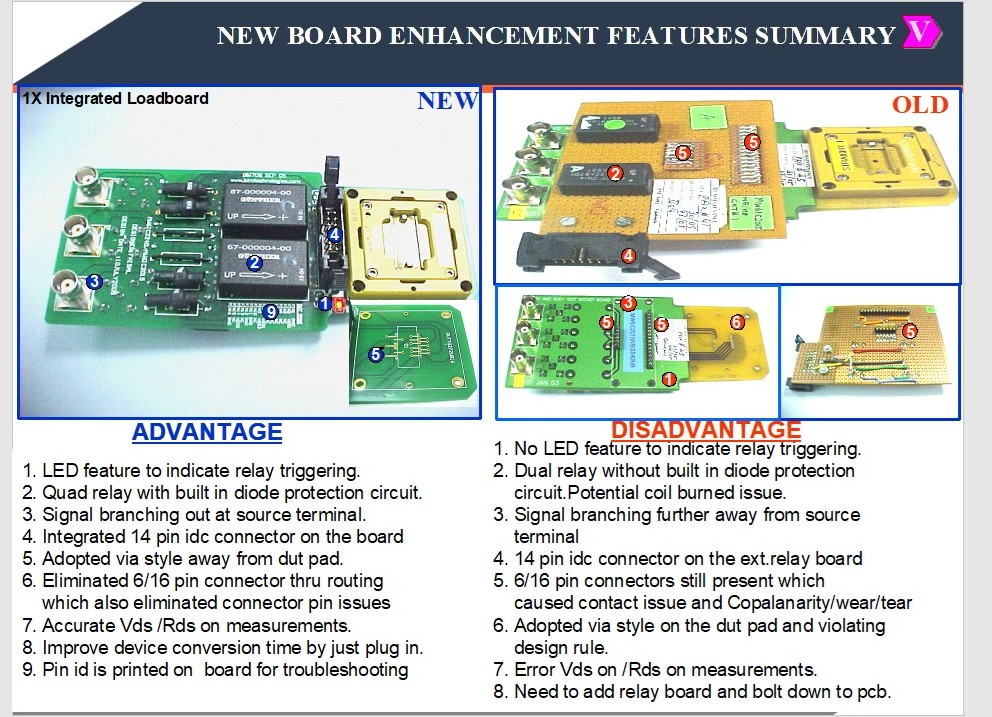

View Slide Demo
